Does ice buildup affect your operations? Navamar builds rugged icebreakers for ice control.
Modular icebreaker
- This 80-ton modular icebreaker is transportable by road using only three transport vehicles.
- Its unique attachment system is extremely rugged, easy to setup and can withstand the worst conditions.
- The boat sections are easy to reassemble, allowing the unit to be put in operation in just a few days.
IB-600
- Type: Modular Icebreaker
- Front shell 26 mm thick
- Ice breaking capabilities: up to 600 mm
- Assembled dimensions: 18,28m x 5,51m
- Assembled weight: 80 t
- Cargo capacity: 15 t
- Draft: 0.90 m to 1.12 m loaded
- Propulsion: Hydrostatic allowing operations in extreme conditions (shallow water, ice and wood debris)
- Engine: 2 X 345 hp
- Speed: 7-8 kn
|

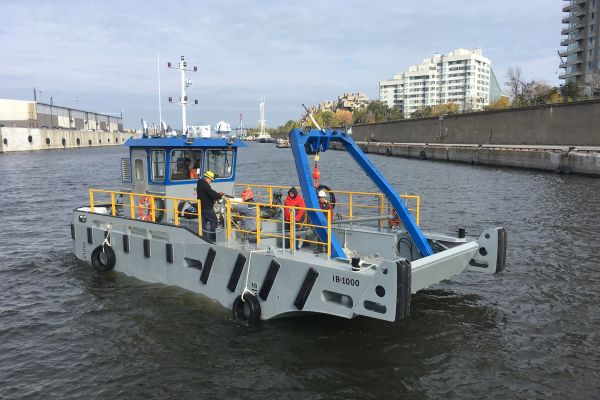

IB-1000
- Vessel Type: Multifunctional Self- Propelled Steel Icebreaker/ Workboat
- Length Overall (hull only): 11.95m
- Beam Overall: 4.80m
- Draft: 1.45m
- Displacement (operational): 40.5 TONNES
- Gross Tonnage: 14.99
- Boat Cargo Capacity: 2.5 TONNES
- Lifting A- Frame Capacity, SWL: 2.5 TONNES
- Boat Design Speed: 9Kn
- Propulsion: 2 X VOLVO PENTA D13-MH, 2X500HP
- Bollard pull: 6.8 TONNES
- Diesel generator, 24KW
- Front Ramp for working near the water
- Front push knees
- Side Rubber bumper fender
- Stern double towing bit
- Split wheelhouse for easy transportation
|
